A회사와 B회사간 통신을 import를 이용하지 말고 가능하게 해보자.
- A회사(vrf A)는 빨간색, B회사(vrf B)는 파란색으로 나타낸다.
- vrf Import 없이 회사간의 통신을 가능하게 하려고 한다.
- 서로 RT를 import 받지 아니하고 통신을 시키기 위해, GRN이라는 라우터를 생성해주고 eBGP로 연동하였다. 실습에는 없지만 해당 ebgp 구간에 NGFW를 넣어준다면 정책으로 제어가 가능하여 라우팅 전파보다 수월하고 가시성을 높힐 수 있다.
GRN
- 10.0.0.0/9를 aggregate 하여 상세 라우팅을 가지고 있지 않으면 GRN으로 통신하도록 설정했다.
interface Loopback0
ip address 10.255.0.7 255.255.255.255
interface Ethernet0/2
description # PE34_vrf A #
ip address 10.255.255.22 255.255.255.252
!
interface Ethernet0/3
description # PE34_vrf B #
ip address 10.255.255.26 255.255.255.252
!
router bgp 65001
bgp router-id 10.255.0.7
bgp log-neighbor-changes
aggregate-address 10.0.0.0 255.128.0.0
neighbor 10.255.255.21 remote-as 65000
neighbor 10.255.255.25 remote-as 65000
!
PE1,2
ip vrf A
rd 65000:100001
route-target export 65000:2100
route-target import 65000:2100
mpls label protocol ldp
mpls ldp router-id Loopback0
interface Loopback0
ip address 10.255.0.1 255.255.255.255
interface Ethernet0/0
description ## P ##
ip address 10.255.255.1 255.255.255.252
ip ospf network point-to-point
interface Ethernet0/1
description ## PC1 (10.10.1.1/24) ##
ip vrf forwarding A
ip address 10.10.1.254 255.255.255.0
router ospf 1
mpls ldp sync
mpls ldp autoconfig
router-id 10.255.0.1
network 10.255.0.1 0.0.0.0 area 0
network 10.255.255.1 0.0.0.0 area 0
router bgp 65000
bgp router-id 10.255.0.1
neighbor 10.255.0.6 remote-as 65000
neighbor 10.255.0.6 update-source Loopback0
address-family vpnv4
neighbor 10.255.0.6 activate
neighbor 10.255.0.6 send-community extended
exit-address-family
address-family ipv4 vrf A
redistribute connected
maximum-paths ibgp 4
exit-address-family
PE3,4
ip vrf A
rd 65000:100002
route-target export 65000:2100
route-target import 65000:2100
ip vrf B
rd 65000:200002
route-target export 65000:2200
route-target import 65000:2200
mpls label protocol ldp
interface Loopback0
ip address 10.255.0.2 255.255.255.255
ip ospf network point-to-point
interface Ethernet0/0
description ## P ##
ip address 10.255.255.5 255.255.255.252
ip ospf network point-to-point
interface Ethernet0/1
description ## PC2 (10.10.2.1/24) ##
ip vrf forwarding B
ip address 10.10.2.254 255.255.255.0
interface Ethernet0/2
ip vrf forwarding A
ip address 10.255.255.21 255.255.255.252
interface Ethernet0/3
ip vrf forwarding B
ip address 10.255.255.25 255.255.255.252
router ospf 1
mpls ldp sync
mpls ldp autoconfig
router-id 10.255.0.2
network 10.255.0.2 0.0.0.0 area 0
network 10.255.255.5 0.0.0.0 area 0
router bgp 65000
bgp router-id 10.255.0.2
neighbor 10.255.0.6 remote-as 65000
neighbor 10.255.0.6 update-source Loopback0
address-family vpnv4
neighbor 10.255.0.6 activate
neighbor 10.255.0.6 send-community extended
exit-address-family
address-family ipv4 vrf A
redistribute connected
neighbor 10.255.255.22 remote-as 65001
neighbor 10.255.255.22 activate
maximum-paths ibgp 4
exit-address-family
!
address-family ipv4 vrf B
redistribute connected
neighbor 10.255.255.26 remote-as 65001
neighbor 10.255.255.26 activate
maximum-paths ibgp 4
exit-address-family
mpls ldp router-id Loopback0
CPE1
ip vrf A
rd 65000:100004
route-target export 65000:2100
route-target import 65000:2100
mpls label protocol ldp
interface Loopback0
ip address 10.255.0.4 255.255.255.255
ip ospf network point-to-point
interface Ethernet0/0
description ## P ##
ip address 10.255.255.9 255.255.255.252
ip ospf network point-to-point
interface Ethernet0/1
description # PC3 (10.10.3.1/24) #
ip vrf forwarding A
ip address 10.10.3.254 255.255.255.0
interface Ethernet0/2
description # PC4 (10.10.4.1/24) #
ip vrf forwarding A
ip address 10.10.4.254 255.255.255.0
router ospf 1
mpls ldp sync
mpls ldp autoconfig
router-id 10.255.0.4
network 10.255.0.4 0.0.0.0 area 0
network 10.255.255.9 0.0.0.0 area 0
router bgp 65000
bgp router-id 10.255.0.4
neighbor 10.255.0.6 remote-as 65000
neighbor 10.255.0.6 update-source Loopback0
address-family vpnv4
neighbor 10.255.0.6 activate
neighbor 10.255.0.6 send-community extended
exit-address-family
address-family ipv4 vrf A
redistribute connected
maximum-paths ibgp 4
exit-address-family
mpls ldp router-id Loopback0
CPE2
ip vrf B
rd 65000:200005
route-target export 65000:2200
route-target import 65000:2200
mpls label protocol ldp
interface Loopback0
ip address 10.255.0.5 255.255.255.255
ip ospf network point-to-point
interface Ethernet0/0
description ## P ##
ip address 10.255.255.13 255.255.255.252
ip ospf network point-to-point
interface Ethernet0/1
description ## PC5 (10.10.5.1/24) ##
ip vrf forwarding B
ip address 10.10.5.254 255.255.255.0
router ospf 1
mpls ldp sync
mpls ldp autoconfig
router-id 10.255.0.5
network 10.255.0.5 0.0.0.0 area 0
network 10.255.255.13 0.0.0.0 area 0
router bgp 65000
bgp router-id 10.255.0.5
bgp log-neighbor-changes
neighbor 10.255.0.6 remote-as 65000
neighbor 10.255.0.6 update-source Loopback0
address-family vpnv4
neighbor 10.255.0.6 activate
neighbor 10.255.0.6 send-community extended
exit-address-family
address-family ipv4 vrf B
redistribute connected
maximum-paths ibgp 4
exit-address-family
mpls ldp router-id Loopback0
RR
interface Loopback0
ip address 10.255.0.6 255.255.255.255
ip ospf network point-to-point
interface Ethernet0/0
description ## P ##
ip address 10.255.255.17 255.255.255.252
ip ospf network point-to-point
router ospf 1
mpls ldp sync
mpls ldp autoconfig
router-id 10.255.0.6
network 10.255.0.6 0.0.0.0 area 0
network 10.255.255.17 0.0.0.0 area 0
router bgp 65000
bgp router-id 10.255.0.6
neighbor RR-Client peer-group
neighbor RR-Client remote-as 65000
neighbor RR-Client update-source Loopback0
neighbor RR-Client route-reflector-client
neighbor 10.255.0.1 peer-group RR-Client
neighbor 10.255.0.2 peer-group RR-Client
neighbor 10.255.0.4 peer-group RR-Client
neighbor 10.255.0.5 peer-group RR-Client
address-family vpnv4
neighbor RR-Client send-community extended
neighbor RR-Client route-reflector-client
neighbor 10.255.0.1 activate
neighbor 10.255.0.2 activate
neighbor 10.255.0.4 activate
neighbor 10.255.0.5 activate
exit-address-family
P
mpls label protocol ldp
mpls ldp router-id Loopback0
interface Loopback0
ip address 10.255.0.3 255.255.255.255
interface Ethernet0/0
description ## PE1/2 ##
ip address 10.255.255.2 255.255.255.252
ip ospf network point-to-point
interface Ethernet0/1
description ## PE3/4 ##
ip address 10.255.255.6 255.255.255.252
ip ospf network point-to-point
interface Ethernet0/2
description ## CPE1 ##
ip address 10.255.255.10 255.255.255.252
ip ospf network point-to-point
interface Ethernet0/3
description ## CPE2 ##
ip address 10.255.255.14 255.255.255.252
ip ospf network point-to-point
interface Ethernet1/3
description ## RR ##
ip address 10.255.255.18 255.255.255.252
ip ospf network point-to-point
router ospf 1
mpls ldp sync
mpls ldp autoconfig
router-id 10.255.0.3
network 10.255.0.3 0.0.0.0 area 0
network 10.255.255.0 0.0.0.255 area 0
[결과]
PC1(10.10.1.1/24)에서 PC5(10.10.5.1/24)로 통신한다고 가정해보자.
- Custormer PE1에서 상세 라우팅이 없으면 롱기스트 매치 룰에 의해 10.0.0.0/9 라우팅을 보고 넥스트 홉인 PE34(10.255.0.2)로 포워딩 한다.

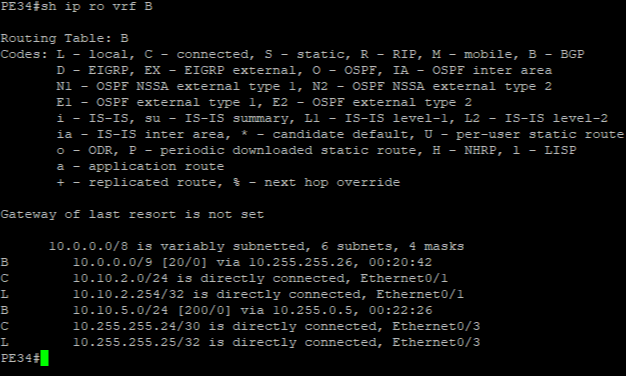

- PE34에서도 롱기스트 매치룰에 적용받아 GRN 라우터로 통신하게 된다.
- GRN 라우터는 vrf A와 vrf B의 라우팅을 모두 받고 있어서 10.10.5.0/24 라우팅을 가지고 있다. PE34의 vrf B로 포워딩 된다.
- 10.10.5.0/24의 라우팅을 보고 CPE2로 포워딩 한다.
- Custormer PE2에서 Connected로 10.10.5.0/24 대역을 가지고 있어 목적지까지 통신한다. 응답 패킷 또한 역순으로 동작하게 된다.
